Hirschmann became a SKS company in 2006.

Function & Design

Robust | Flexible | Resilient

“In the global competitive scenario, low grade measuring- and testing instruments cost a company much more than investment in equipment of proven quality. Because in these times of limited budgets and cutthroat competition, there is one thing you cannot afford” (Hirschmann)

As a leading supplier of electro-mechanical components, SKS offers products and measurement accessories according to IEC 61010. Our products are designed for voltages from 30 VAC / 60 VDC to 1000 V AC/DC. Voltages above 30 VAC / 60 VDC may lead to dangerous currents for the human body. For this, SKS offers the 2mm & 4mm safety system. If used correctly, a large range of the products ensures optimum safety up to 1,000 V. The products are designed, tested and marked according to IEC 61010. These products bear a text indicating the permissible rated voltage and measurement category. SKS products meet international safety standards and are recognized all over the world as reliable and high-quality products.

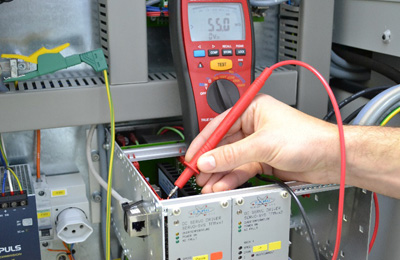

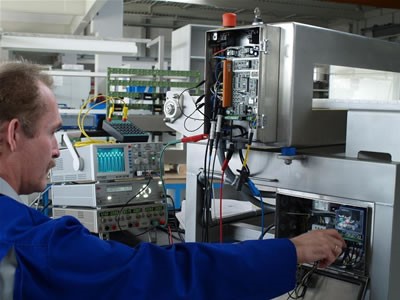

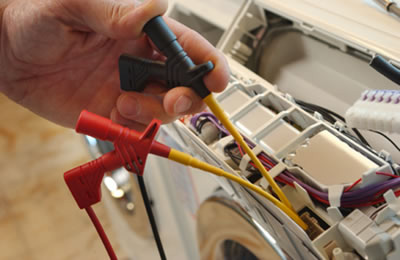

Test and Measurement Applications

Clamp type test probes with diverse grip jaw-constructions and test probes with strong or sprung stainless steel tip assure the expansion to measuring points, that are unreachable by hand and contact respectively clamp with constant force. Only by this way exact measuring results are achievable.

1 2 3

Product Groups

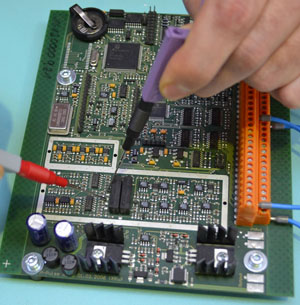

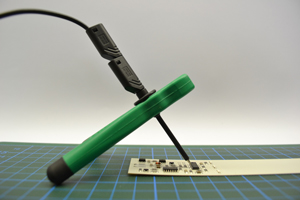

Test Probes

Safer contact with higher point-accuracy
Long life
Finest needles for contacting SMD components and finest applications
Sharp needles for penetrating oxidation layers and insulation
Strong steel probes for robust using
Spring-loaded tips maintain contact without damaging the test specimen
No accidental short-circuiting: only the fine probe is conductive
IC-contacting aid SS 260 (accessory)

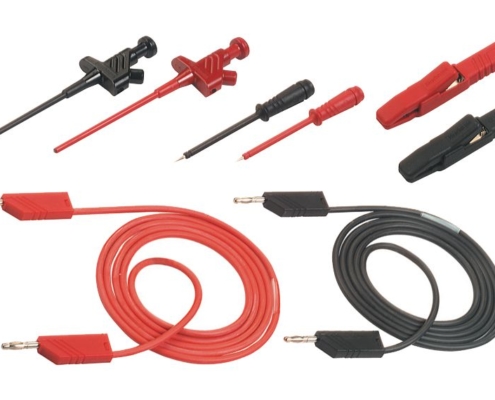

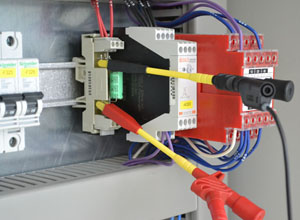

Clamp Type Test Probe

Fast contact in all directions
Hands-free operation once contact is made
No accidental short-circuiting: only the clamp is conductive
Special product models and customized products for specific applications, for example measurements on surface-mounted PCBs
Special solutions for isolating conductors (for example in automobiles)

Crocodile Clips

High-stress bearing tool for the measurement and transmission of currents
Low contact resistance
Variable clamping
Sharp, carefully machined teeth for a perfect hold
Clamping range from a few mm to 30 mm
Gentle fine wire clamping area
Stainless steel version for use in galvanic and acidic environments
Special types with soldering connections or crimp connection for self-assembling
Free hands after contacting, safety seat

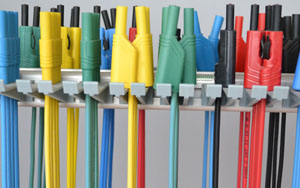

Measuring Leads

Highly flexible even at low temperatures
Up to 1,000 V/ CAT III, 32 A (IEC 61010)
Conductors made of silicone that are resistant to contact with soldering iron
Wire cross-sections up to 2.5 mm²
Length, colour and appropriate plugs in different variants
Double insulation for optimum protection
A built-in colour indicator (white) for identification of damages
sliding sleeve system for devices without safety sockets
Manufacturing of special types on request

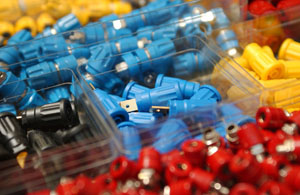

Sockets

High quality sockets
For insulated or uninsulated use, depending on the requirement
Contact protection up to 1,000 V CAT III according to IEC 61010
Simple, even spring-loaded clamping of cables also possible
Tin-plated, nickel-plated and gold-plated surfaces
Variants of spring-loaded sockets and unsprung sockets

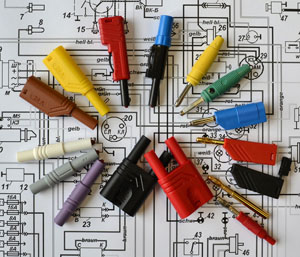

Plugs

Large colour spectrum
Wide range of self-assembling plugs
Different contact and connection systems
Special applications with voltages up to 1000 V
Safety plugs with screw connection according to IEC 61010
Self-assembling easily possible, without special tools

Other

Exchangeable Spring Contact tip
Coaxial design
Low input capacitance
Innovative IC contacting system
Delivery with extensive accessories

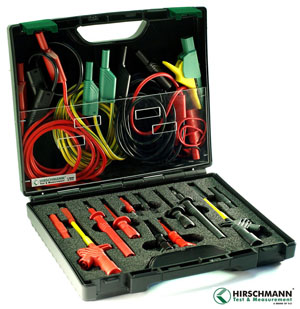

Sets

Specialists rely on extremely useful combinations of well-matched SKS products. With a complete set of fittings in the form of a handy kit, people in the field are optimally prepared for their various tasks – all-in-one solution. The components are perfectly matched to each other. We offer standard test equipment sets in all systems.

Equipment

We have also various accessories in range appropriate to our Test & Measurement products. To support assembly or to make your work with test equipment easier.
